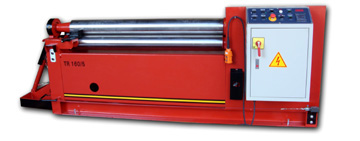

Lemas 3-Roll Initail Pinch Machines

LEMAS initial pinch bending rolls feature hydraulic adjustment of the rear bending roll and the lower pinch roll.
In addition, the rear roll is hydraulically tiltable for cone rolling, and the hydraulic drop end makes it simple to remove the completed cylinder from the rolls.
Unique to LEMAS initial pinch machines is the Quick and Easy pinch gauge adjustment.
Consistent positioning of the lower pinch roll is critical to rolling consistent quality cylinders.
By simply inserting a small tab of the material thickness to be rolled into the pinch gauge control, the lower pinch roll is properly positioned to ensure that consistency.

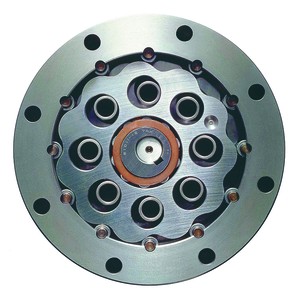

Sumitomo Cyclo® 6000 gearless speed reducers feature unique epicycloidal design has advantages superior to speed reducers using common tooth gears.
Unlike gear teeth with limited contact points, a Cyclo has two-thirds of its reduction components in contact at all times.
This design enables Cyclo speed reducers and gear motors to withstand shock loads exceeding 500% of their ratings, and provide exceptional performance, reliability and long life in the most severe applications.

Standard Features on LEMAS Machines

• Direct-Drive Design using no belts and featuring positive drive regardless of position of pinch roll
• Sumitomo Cyclo® 6000 Gearless Speed Reducer
• Grooves for 1/4", 3/8", 1/2" round bar (except 80 models)
• Spherical roller bearings
• Hydraulically powered rear bending roll
• Power tilting rear bending roll for cone rolling

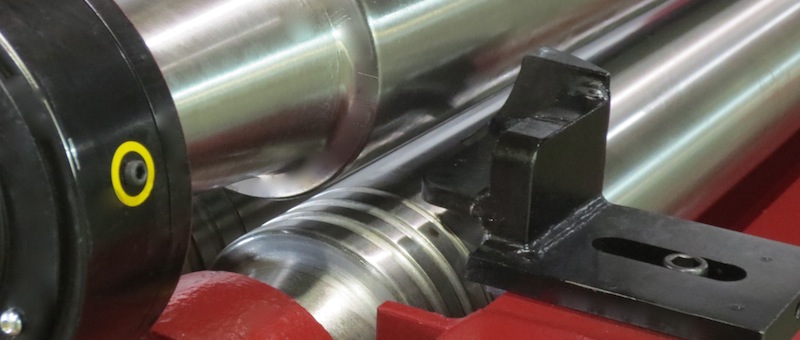

• Cone bending attachment
• Digital readout for position of rear bending roll
• Hydraulic operated drop-end for quick removal of rolled product
• Quick and Easy hydraulic lower pinch roll adjustment with pinch gauge control

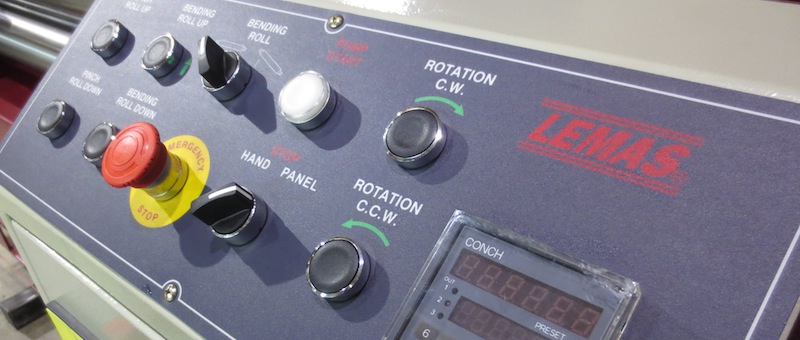

• Forward/Reverse rotation controls - Console mounted and hand-held pendant
• Upper and lower pinch rolls driven
• All rolls heat treated to 50 Rc
• Manual tilt of the lower pinch roll
• Emergency stop cable
• Hydraulic oil, tools, pinch gauge stock, technical manual
